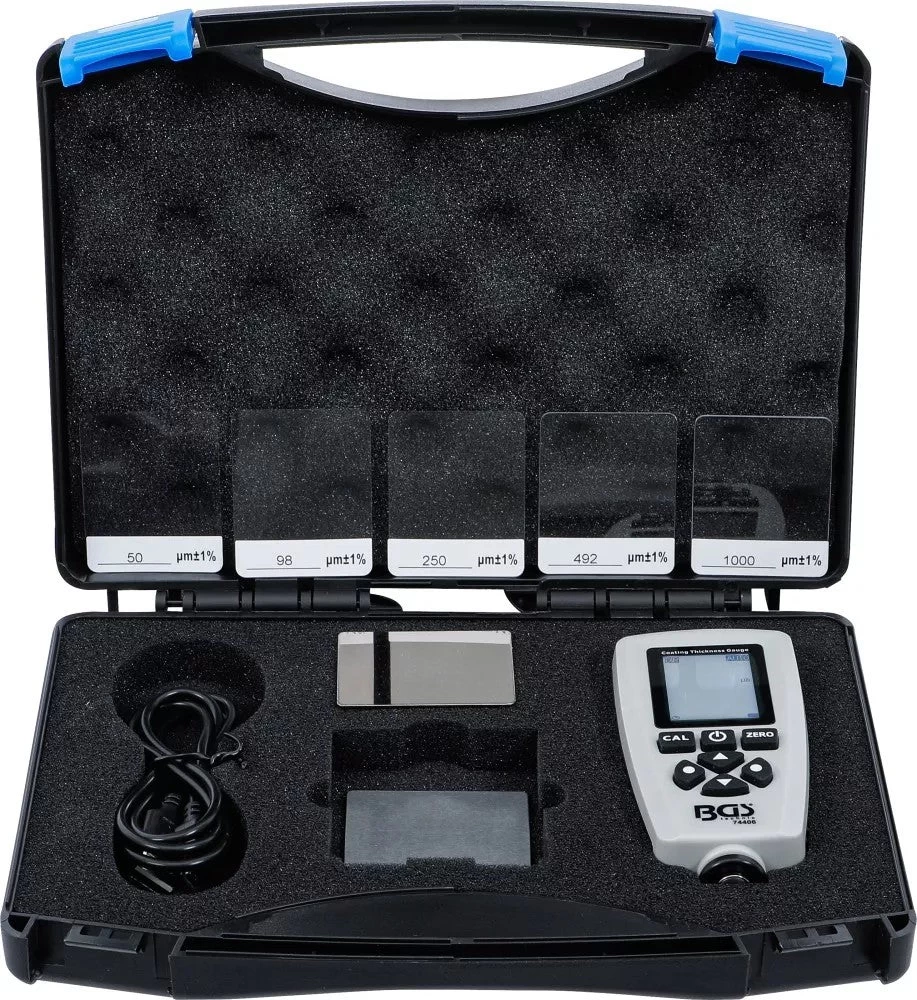

Dangos storio matuoklis | metaliniams ir nemetaliniams paviršiams (74406)

Technical data. for non-destructive measurements of the coating thickness. suitable for non-magnetic coatings such as paint, enamel, chrome on ferrous metals and insulating coatings such as paint, anodized on non-ferrous metals. LCD display with 128 x 128 dot matrix. easy-to-understand menu navigation. different measurement modes like single and continuous measurements. probe modes like induction and eddy current. group modes like direct (DIR), readings are lost on power off and general (GEN), readings are stored on power off. 80 reading memory for each group. zero and multi-point calibration (up to 4 points) for each group. recall or delete individually stored readings and delete group readings. statistics display for mean, minimum, maximum and deviation. definable high or low limit alarm. automatic shutdown function. USB interface for data transfer. low battery and error indicator. accuracy (induction): +/- (2.5 % + 1 m). accuracy (Eddy Current): +/- (2 % + 0.039 mils). resolution: 0 m - 99.9 m (0.1 m) / 100 m - 999 m (1 m) / >1000 m (0.01 mm). minimum substrate thickness (induction): 0.2 mm. minimum substrate thickness (eddy current): 0.05 mm. minimum measuring surface: 20 mm. maximum measurement rate: 2 readings per second. power supply: 2x 1.5 V battery AAA. operating humidity: 20 - 90%. units of measurement: m, mm, mils. dimensions: 110 x 53 x 24 mm
