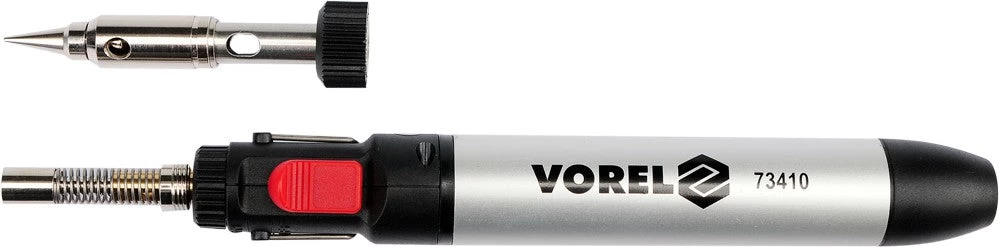

Dujinis kaitintuvas | 25-80W | 1300°C (73410)

Mark. Vorel. Symbol. 73410. Series. GRD. Application. tin soldering, pyrography - burning in wood, shrinking heat-shrinkable materials, soldering Cu pipes, unscrewing stuck screws, thawing, bending and hot forming, welding and. Power. 25~80W. Working time. 60 min. Blowing temperature. 600 C. Max. tip temperature. 450 C. Tank capacity. 15 ml. Flame temperature. 1300 C. Gas consumption. 6.6g/h. Type of feed gas. butane lighter gas, propane-butane lighter gas. Weight with empty tank. 60 g. VOREL 73410 3-in-1 gas soldering iron powered by lighter gas (butane).. Can be used as:. soldering iron at 450C. burner at 1300C. heat gun with a temperature of 600C. It has a smooth adjustment of the flame size, a gas cut-off button and a foldable stand.. Destiny:. for soldering. for melting. for cutting at high temperature. for welding. to shrink. for wood burning. Refilling the tank:. Close the gas valve by turning the regulator knob as far as it will go in the direction marked "1" and make sure that the switch is in the position marked "OFF".. Good quality gas should be used. The gas container should be equipped with an adapter adapted to the type of valve.. Point the burner with the valve upwards. Connect the outlet of the gas container to the valve. Press the cylinder against the valve.. Fill until the first signs of overfilling, gas will start to come out from between the burner connections from the gas container.. Put the burner aside for a few minutes to stabilize the gas pressure in the tank.
