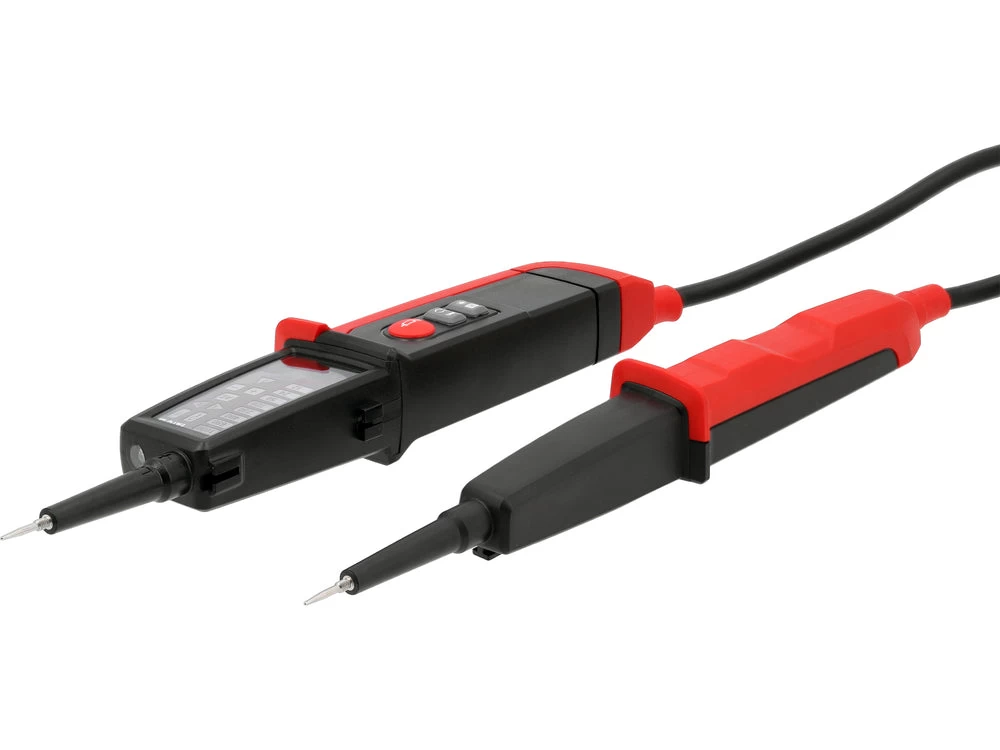

Dvipolinis įtampos testeris tvirtame korpuse su lanksčiais laidais | TEST RCD (YT-28330)

YT-28330. TWO POLE VOLTAGE TESTER WITH RCD TEST. Brand. Yato. Entity responsible for this product in the EU. TOYA S.A.More. Series. GRF. Alternating voltage. 6-1000 V a.c.. Direct voltage. 6-1000 V d.c.. Resistance. 0-1999. Regularity. 50-400 Hz. Continuity test. 0-400 M. Phase sequence test. yes. Voltage detection. yes, automatic. Polarity detection. yes, full range. Measurement accuracy. (3% + 5). Reaction time. <1 (LED indicators), 1 (LCD display) s. Dimensions. 280x74x34 mm. Display type. LCD. Display resolution. 1 V a.c./V d.c.. Display range. 1999. LED display thresholds. 12, 24, 50, 120, 230, 400, 690, 1000 V a.c./V d.c.. Auto measurement range. yes. RCD tripping. ~30 mA / 230 V. Max. measurement duration. 30 s. Recovery time (time between two RCD tests). 240 s. Low impedance voltage test mode. yes, approximately 7 k (to eliminate noise). Peak current Is (load). 150 mA. Impedance / peak current. 350 k / Is <3.5 mA (does not trip RCD). Bell ring. yes. Automatic start-up. 12 V a.c./V d.c. (LED indicators), 6 V a.c./V d.c. (LCD display). Power supply. energy source. cell type. 2x1.5V; AAA. Working temperature range. -10 ~ +50 C. Operating relative humidity Rh. <85%. Storage temperature. -10 ~ +50 C. Protection grade. IP64. Weight. 285 g. Application. electric. Symbol. YT-28330. Bipolar voltage tester in a solid housing with flexible cables in silicone insulation. Detects and measures AC and DC voltages in the range of 6 to 1000 V. The result is indicated on the LCD display and via LED indicators. The tester also allows you to:. check the phase rotation sequence in three-phase systems. check the voltage in low impedance mode (to eliminate noise). test the operation of RCD switches with a rated current of 30 mA or less. perform circuit continuity test and measure resistance up to 1999 ohms. Measurements in low light conditions are facilitated by the built-in LED flashlight. Measurement safety is supported by a solid and sealed housing with IP64 standard. The set includes screw-on probe caps to facilitate measurements in sockets. The meter meets the requirements of CAT III 1000 V / CAT IV 600 V surge protection categories.. DC voltage measurement: 6-1000 V d.c.. AC voltage measurement: 6-1000 V a.c.. Resistance measurement: 0-1999. Frequency measurement: 50-400 Hz. Circuit continuity test: 0-400 M. Measurement accuracy: (3% + 5). Impedance (peak current): 350 k / Is <3.5 mA (does not trigger RCD). Response ti
