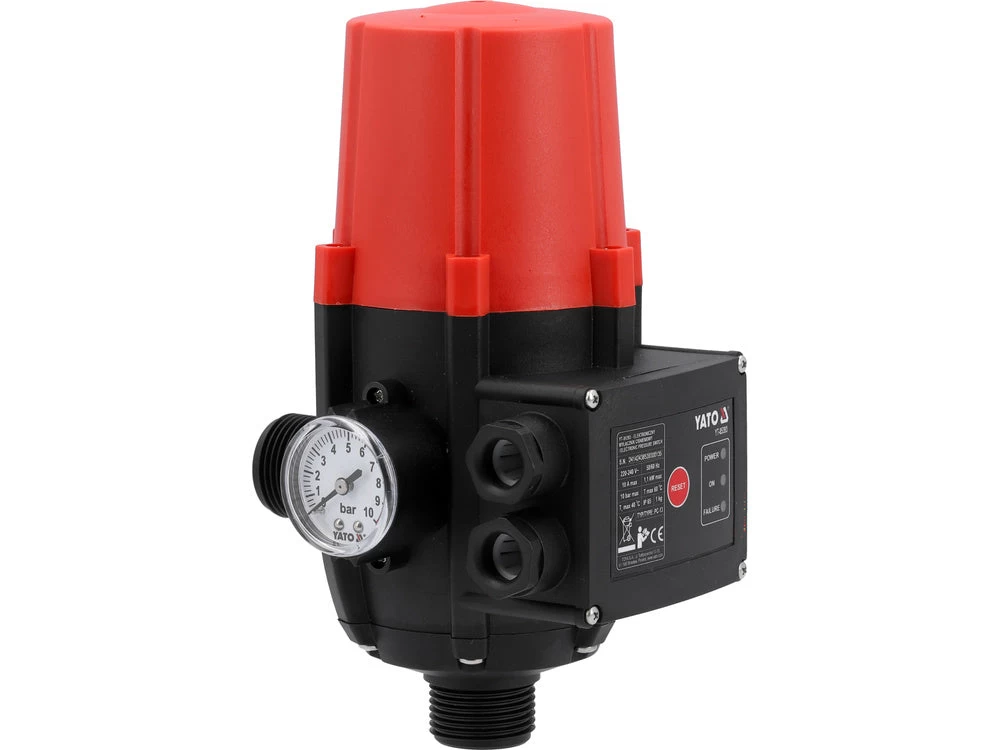

Elektroninis slėgio jungiklis relė siurbliui (YT-85393)

YT-85393. ELECTRONIC PRESSURE SWITCH FOR PUMPS. Brand. Yato. Entity responsible for this product in the EU. TOYA S.A.More. Type. PC-13. Water connection diameter. 1" (25.0 mm). Max. power. 1100 W. Initial pressure. 1.5-2.2 bar. Voltage. 220-240 V a.c.. Frequency. 50/60 Hz. Max. current. 10 A. Material. PP. Automatic on/off. yes. Dry-running protection. yes. Cable length. 1 (input), 0.5 (output) m. Max. water temperature. 60 C. Ambient temperature. 5~40 C. Protection class. IP65. Weight. 1 kg. Application. for automatic control of water pumps. Symbol. YT-85393. The pressure switch provides constant water pressure for garden irrigation or household water supply.. The line pressure in the connected system is monitored by the pressure switch. The water pump is automatically started and stopped depending on the opening and closing of the valve.. Product advantages:. monitors water pressure. provides constant water pressure. protects against dry running. Technical data:. type: PC-13. initial pressure: 1.5-2.2 bar. max. pressure: 10 bar. voltage: 220-240 V. rated current: 10 A. max. power: 1.1 kW. max. liquid temperature: 60C. max. ambient temperature: 40C. protection class: IP65. housing material: polypropylene. input: 1 m cable. output: 0.5 m cable
