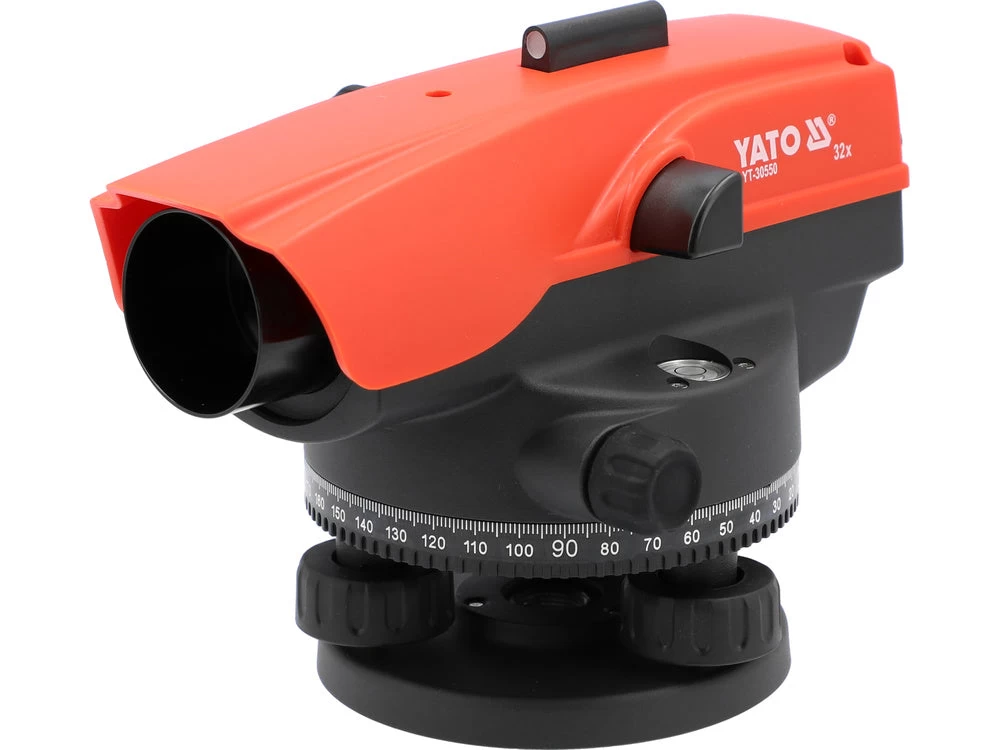

Optinis nivelyras | 32X 38 mm IP66 (YT-30550)

YT-30550. 32X 38MM IP66 OPTICAL LEVEL. Brand. Yato. Entity responsible for this product in the EU. TOYA S.A.More. Measuring range. 110 m. Minimum measuring distance. 1 m. Telescope magnification. 32x. Standard deviation per 1 km double leveling. 1 mm. Height measurement accuracy for a single measurement at 30 m. 1 mm. Addition constant. 0. Multiplication factor. 100. Horizontal circle: division / division interval. 360 / 1. Compensator range. 15'. Compensator accuracy. 0.5". Compensator type. pneumatic. Circular vial accuracy. 8 / 2 mm. Dimensions. 210x135x140 mm. Diameter lens. 38 mm. Tripod thread size. 5/8" (15.9 mm). Tripod included. no. Operating temperature range. -20 ~ +50 C. Storage temperature. -20 ~ +50 C. Protection class. IP66. Weight. 1.4 kg. Symbol. YT-30550. Optical level for surveying and construction. Factory calibrated, ready to work. Equipped with a housing with IP66 tightness class, which means complete protection against dust and heavy rain. Top quality optics, pneumatically damped compensator and working range up to 110 meters guarantee repeatable, precise work in all conditions.. range: 110 m (within a radius of 1 to 55 meters). height measurement accuracy with a single measurement: 1.0 mm/30 m. deviation per 1 km of double leveling: 1.0 mm. circular vial accuracy: 8/2 mm. pneumatic compensator. compensator leveling range: 15. image: vertical. telescope magnification: 32 x. field of view: 120. lens diameter: 38 mm. minimum measuring section: 1 m. multiplication factor: 100, accuracy 0.5''. division, horizontal circle: 1. water resistance: IP66. tripod mount: 5/8''. weight: 1.4 kg. includes plastic case with shock-absorbing filling, plumb line, Allen key, adjustment pin, certificate calibration, user manual
