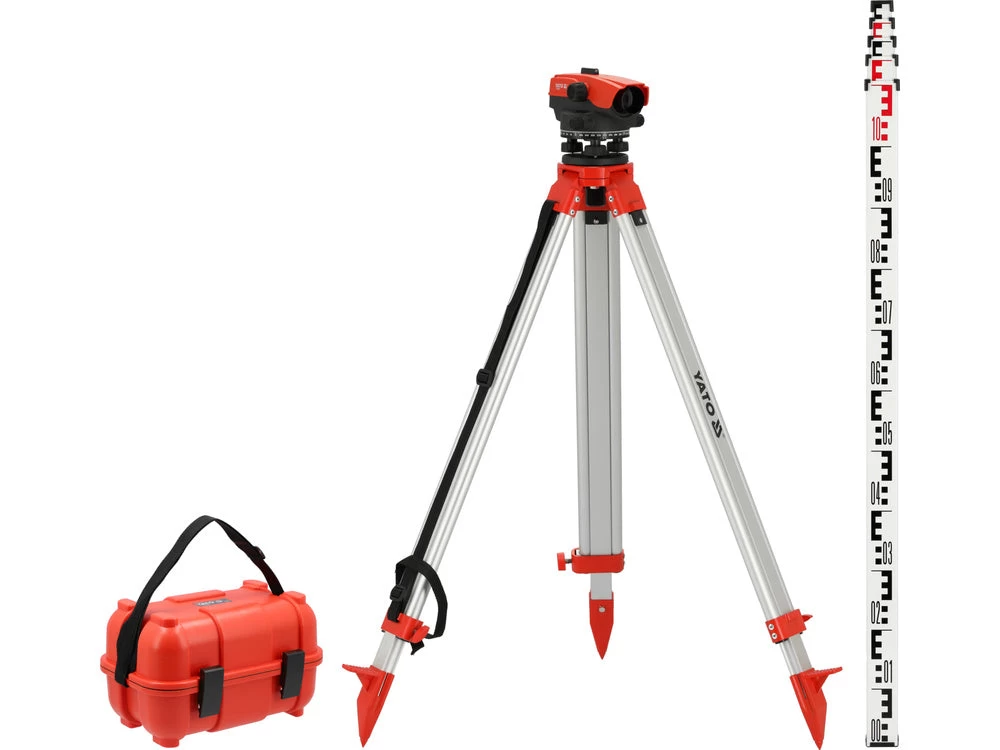

Optinis nivelyras su aksesuarais | 32X IP66 + 5 m lenta + trikojis (YT-30551)

YT-30551. 32X IP66 LEVEL SET + 5M STAND + TRIPOD. Brand. Yato. Entity responsible for this product in the EU. TOYA S.A.More. Measuring range. 110 m. Minimum measuring distance. 1 m. Telescope magnification. 32x. Standard deviation per 1 km double leveling. 1 mm. Height measurement accuracy for a single measurement at 30 m. 1 mm. Adding constant. 0. Multiplication factor. 100. Horizontal circle: division / division interval. 360 / 1. Compensator range. 15'. Compensator accuracy. 0.5". Compensator type. pneumatic. Circular vial accuracy. 8 / 2 mm. Dimensions. 210x135x140 mm. Lens diameter. 38 mm. Tripod thread size. 5/8" (15.9 mm). Tripod included. yes. Operating temperature range. -20 ~ +50 C. Storage temperature. -20 ~ +50 C. Protection class. IP66. Weight. 1.4 kg. Set contents. level, tripod, geodetic staff, plumb line, adjustment pin, Allen key, carrying case. Symbol. YT-30551. Optical level for geodesy and construction in a set with a tripod and a 5-meter geodetic staff. Factory calibrated, ready to work. Equipped with a housing with IP66 tightness class, which means complete protection against dust and heavy rain. Top quality optics, pneumatically damped compensator and a working range of up to 110 meters guarantee repeatable, precise work in all conditions.. range: 110 m (within a radius of 1 to 55 meters). height measurement accuracy with a single measurement: 1.0 mm/30 m. deviation per 1 km of double leveling: 1.0 mm. circular vial accuracy: 8/2 mm. pneumatic compensator. compensator leveling range: 15. image: vertical. telescope magnification: 32 x. field of view: 120. lens diameter: 38 mm. minimum measuring section: 1 m. multiplication factor: 100, accuracy 0.5''. scale, horizontal circle: 1. water resistance: IP66. tripod mount: 5/8''. weight: 1.4 kg. included: tripod, surveying staff, plastic case with shock-absorbing filling, plumb bob, key Allen key, adjustment pin, calibration certificate, user manual
