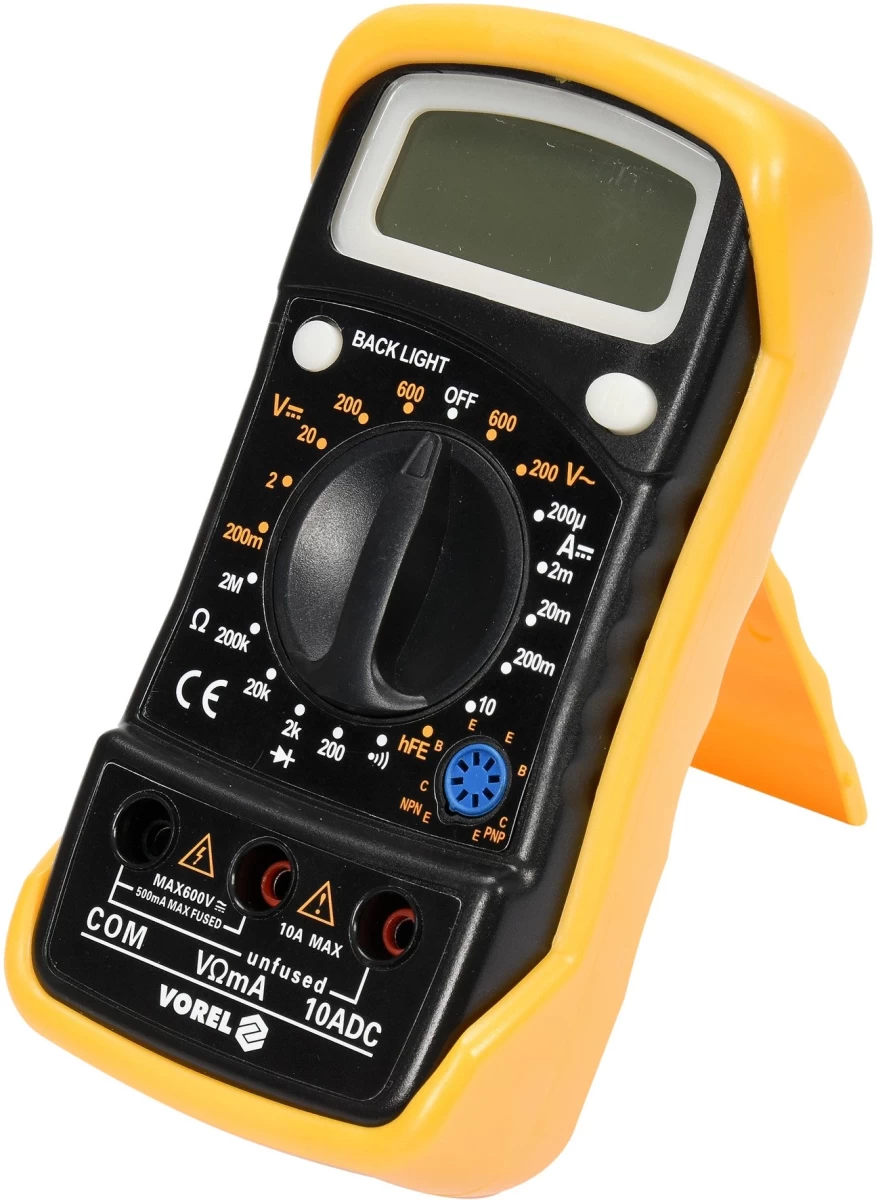

Skaitmeninis daugiafunkcinis testeris (81773)

Multifunctional digital meter with adjustable display brand VOREL 81773.. The digital meter is particularly useful in diagnosing and detecting defective components of electrical installations.. It allows measuring:. alternating voltage: U a.c. 200V / 600V. DC voltage: U d.c. 200mV / 2V / 20V / 200V / 600V. direct current: I d.c. 200 A, 2 mA, 20 mA, 200 mA, 10 A. resistance: R 200 , 2 k, 20 k, 200 k, 2 M. diode test: IF 1 mA, UR 1.5 V. transistor test: hFE PNP, NPN. the audible signal allows easy verification of the continuity of the circuit.. The VOREL 81773 multimeter displays a LCD display that allows displaying the maximum result of 1999. In contrast, its unique advantage is the possibility of backlight in blue, which makes it much easier to read the measured parameters, especially in dark rooms. In addition, the DATA HOLD function allows you to keep the currently measured value on the display.. The meter is powered by a 9V battery (6F22).. Aesthetically made rubber housing primarily protects it against mechanical damage, and at the same time increases the comfort of use. In addition, there is a pull-out support at the back that allows you to position it in a position that makes reading data easier.. The set includes test leads.. Technical data. Index number 81773. EAN 5906083042607. Brand Vorel. Measurement of hFe PNP transistor, NPN. Measurement of alternating voltage 0-600V. DC voltage measurement 0-600V. Resistance measurement 0-2M OHM. Direct current 200u-10A. Circuit continuity test YES. Diode test YES
