Skaitmeninis daugiafunkcinis testeris (81775)

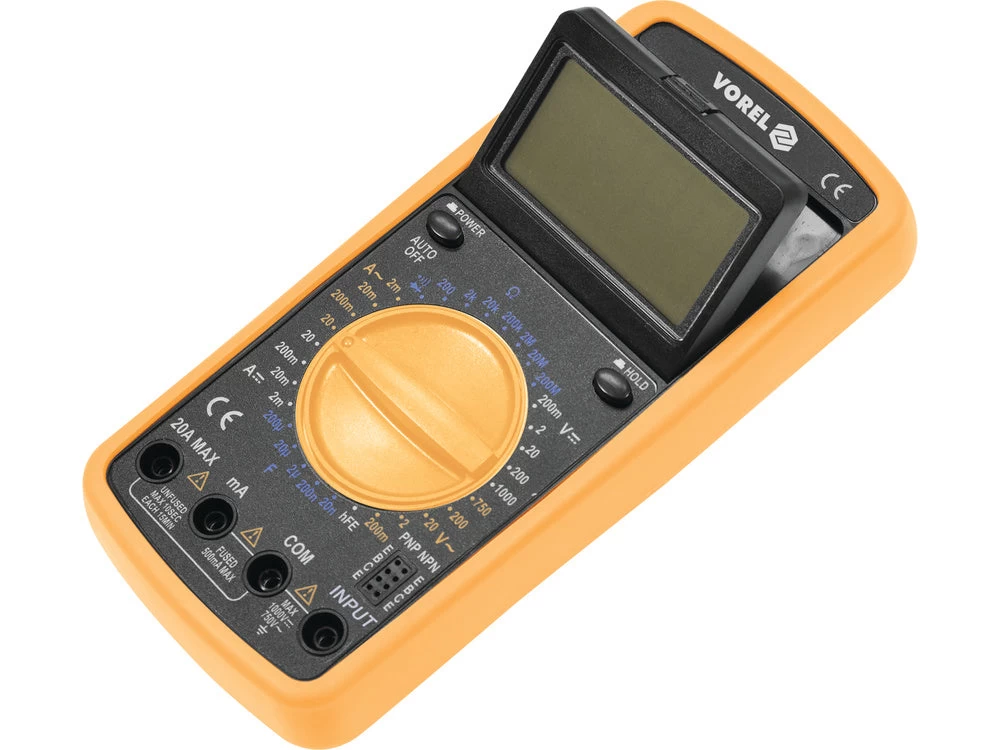

Multifunctional digital meter with adjustable display brand VOREL 81775.. The digital meter is particularly useful in diagnosing and detecting defective components of electrical installations.. It allows measuring:. alternating voltage: U a.c. 200mV / 2V / 20V / 200V / 750V. DC voltage: U d.c. 200mV / 2V / 20V / 200V / 1000V. alternating current: I a.c. 2mA / 20mA / 200mA / 20A. direct current: I d.c. 2mA / 20mA / 200mA / 20A. resistance: R 200 / 2k / 20k / 200k / 2M / 20M / 200M. volume: C 20 nF, 200 nF, 2 F, 20 F, 200 F. diode test: IF 1 mA, UR 1.5 V. transistor test: hFE PNP, NPN. the audible signal allows easy verification of the continuity of the circuit.. The VOREL 81775 multimeter displays a LCD display that allows displaying the maximum result of 1999. In contrast, its unique advantage is the ability to adjust the angle of inclination, which makes it much easier to read the measured parameters. In addition, the DATA HOLD function allows you to keep the currently measured value on the display.. The meter is powered by a 9V battery (6F22). Thanks to the AUTO-POWER OFF function, the device will automatically switch off after 15 minutes of inactivity, which saves battery life and extends its life.. Aesthetically made rubber housing primarily protects it against mechanical damage, and at the same time increases the comfort of use. In addition, there is a pull-out support at the back that allows you to position it in a position that makes reading data easier.. The set includes test leads.. Technical data. Index number 81775. EAN 5906083042584. Brand Vorel. Measurement of hFe PNP transistor, NPN. Measurement of alternating voltage 0-750V. DC voltage measurement 0-1000V. Capacity measurement 20n - 200uF. Resistance measurement 0-200M. Alternating current 0-20A. Constant current 0-20A. Circuit continuity test YES. Diode test YES
