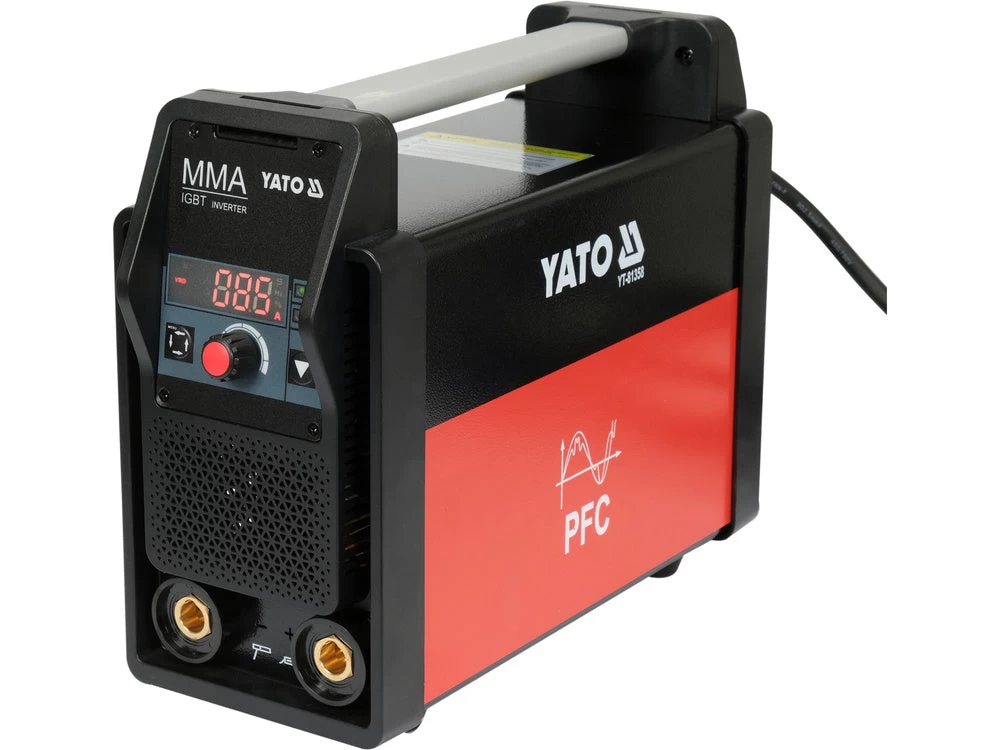

Suvirinimo aparatas | inverterterinis | MMA su PFC 200A (YT-81358)

T-81358. MMA INVERTER WELDING MACHINE WITH PFC 200A. Mark. Yato. Symbol. YT-81358. Type of welding machine. PFC, IGBT. Max. welding current. 85 (MMA), 200 (TIG lift) A. Min. welding current. 10 (MMA), 10 (TIG lift) A. Tension. 115, 230 V a.c.. Frequency. 50/60 Hz. Power factor. 0.93. Dimensions. 350x138x270mm. Electrode diameter. 1.6~4mm. Duty cycle. 15 (MMA), 25 (TIG lift) %. Power source efficiency. 80%. CPU processor. Yes. VRD voltage reduction system. Yes. Arch stabilization. Yes. Hot start. Yes. Display type. LCD, segmented. Overheating protection. Yes. Short circuit protection function. Yes. Possibility of power supply from a generator. Yes. Winding insulation class. F. Electrical insulation class. AND. Level of security. IP21. Mass. 6.19kg. Set contents. welding machine, grounding clamps 300 A, 3 m (16 mm2), electrode holder 200 A, 3 m (16 mm2), power cable 2.5 m, shoulder strap. Application. welding with coated electrodes (MMA method) with direct current and non-consumable electrodes (TIG lift method) with direct or pulsed current - acidic, basic and cellulose. Application continued. steel, stainless steel, cast iron, copper, aluminum and others.. Welding method. MMA, TIG lift, TIG lift with pulse. 3 417 / 5 000. Vertimo rezultatai. Vertimo rezultatas. MMA 200A PFC inverter welding machine with a power factor correction module, advanced functions and the option of DC TIG LIFT welding with pulse. The PFC module reduces interference transmitted to the network and lowers passive energy consumption. As a result, we minimize the risk of welding repairs in places with sensitive electronics, and we will also use the full potential of the welder (maximum amperage) even with a 50-meter extension cord. Suitable for rutile, cellulose and alkaline electrodes.. Basic information:. Welding current: 10-200A. Recommended electrode diameter: 1.6-4.0mm. Electrode holder up to 200A, cable cross-section 16mm2, length 3 meters. Mass holder up to 300A, cable cross-section 16 mm2, length 3 meters. Power cord: H07RN-F 3G2.5mm2, length 2.5 meters. Efficiency: 80%. Power factor: 0.93. Adjustable shoulder strap. Dimensions: 350X138X270mm. Weight: 6.2kg. PFC module:. Reduces energy consumption and limits current harmonics. The YT-81358 at a maximum setting of 200A will draw 7.1 kVA. A welder with the same welding current, without a PFC module, will consume approximately 9.9 kVA. Almost 3 kVA more at 230V supply voltage is a huge problem for both the electrical installation and power generators. In many cases, the maximum amperage of the welding machine will not be possible to achieve due to the activation of the installation's overcurrent protections, high voltage drop (especially for installations with a cable cross-section of less than 4 mm2), or throttling of the generator.. Functions:. DC Pulse. Real Hot Start with regulation. Real Arc Force with adjustment. Anti stick. VRD. Voltage modes for basic, cellulose and acid electrodes. Overheating protection, fan on demand. Function description:. DC pulse - welding with pulsed current. The welding current alternates between base and peak levels in an orderly manner. This reduces the overall heat input to the welded material and reduces spatter. Makes it easier to weld metals with high thermal conductivity, as well as thinner metals, without burning them/burning holes. Additionally, you can achieve narrower and deeper welds on thicker metals. The YT-81358 model has an adjustable pulse frequency in the range from 1 to 100 Hz and the peak and base current power values relative to the algorithm for a given setting in the range from 10 to 50%.. Hot start - when the electrode is placed on the material to be welded, the welder increases the welding current for a fraction of a second, which makes it much easier to ignite the arc. The YT-81358 model allows you to adjust the function in the range of 0-50% and its operation time from 0.0 to 2.0s.. Arc force - regulates the dynamics of the arc depending on the distance of the electrode from the welded element. The YT-81358 model has adjustable parameters of this function in the range of -15 to +15%.. Anti stick - cuts off the welding current when the electrode is short-circuited, which allows the electrode to be separated from the welded material.. VRD - the function reduces the no-load voltage from approximately 60V to a level that is safe for humans. The YT-81358 model has the ability to turn the VRD function on and off.. Electrode modes - automatic regulation of output voltage for different types of electrodes. The YT-81358 model has dedicated settings for basic (E7018), cellulose (E6010) and rutile (E6013) electrodes.. Overheating protection (fan on demand) - the microprocessor in the YT-81358 checks the temperature of critical components in real time. Depending on the temperature, it turns on and controls the fan speed.
