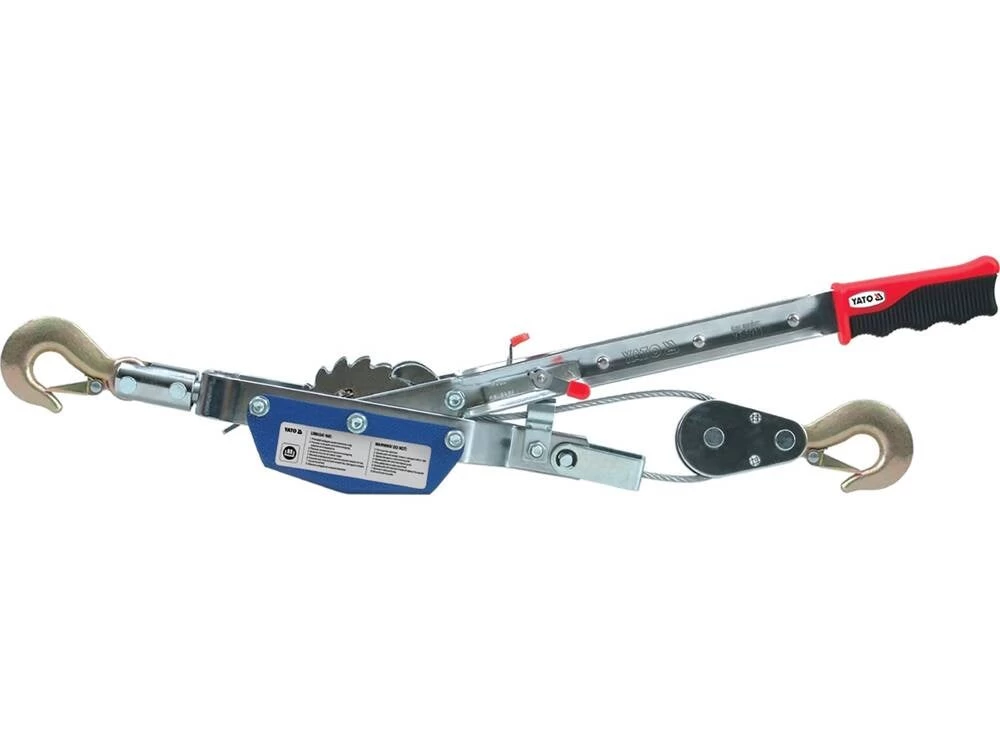

Tempimo gervė | 3 m (YT-5911)

Mark. Yato. Symbol. YT-5911. Max. pulling force. 1000 daN. Rope length. 3 m. Rope diameter. 5mm. Lever ratio. 15:1. The manually driven rope winch consists of a steel body containing a drum, gears and a ratchet mechanism with a large, appropriately selected gear ratio. The driving lever is used to move the drum and wind the steel rope. The winch can move loads weighing up to approx. 1020 kg over a distance of approx. 3 m. A rope winch with a manual drive is used to transport loads in a horizontal plane, e.g. to drag boxes along a ramp. Due to its construction, it cannot be used for vertical lifting of weights.
